Analyze Model Behaviour of Classification
Consider to download this Jupyter Notebook and run locally, or test it with Colab.
In this notebook, we will show how to analyze the model behaviour based using MOVAL.
We provide the model predicted classification results (network logits) for this tutorial, which will be download automatically. We also provide the model training code in https://github.com/ZerojumpLine/Robust-Skin-Lesion-Classification.
More specifically, we show an example of analyzing model behaviour under domain shifts on CIFAR10-LT based on ResNet. We will utilize the calculated logits on test dataset with sythesized motion blur condition.
We will visualize the calibrated confidence scores as an proper indication of model failure.
[1]:
!pip install moval
!pip install seaborn
!pip install pandas
!pip install tqdm
!pip install matplotlib
Requirement already satisfied: moval in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (0.3.16)
Requirement already satisfied: scikit-learn>=1.3.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from moval) (1.3.0)
Requirement already satisfied: scipy>=1.8.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from moval) (1.10.1)
Requirement already satisfied: pytest in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from moval) (7.4.3)
Requirement already satisfied: gdown in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from moval) (4.7.1)
Requirement already satisfied: pandas in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from moval) (1.5.3)
Requirement already satisfied: nibabel in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from moval) (5.1.0)
Requirement already satisfied: numpy>=1.17.3 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from scikit-learn>=1.3.0->moval) (1.24.4)
Requirement already satisfied: joblib>=1.1.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from scikit-learn>=1.3.0->moval) (1.3.1)
Requirement already satisfied: threadpoolctl>=2.0.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from scikit-learn>=1.3.0->moval) (3.1.0)
Requirement already satisfied: filelock in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from gdown->moval) (3.13.1)
Requirement already satisfied: requests[socks] in /Users/zejuli/.local/lib/python3.8/site-packages (from gdown->moval) (2.31.0)
Requirement already satisfied: six in /Users/zejuli/.local/lib/python3.8/site-packages (from gdown->moval) (1.16.0)
Requirement already satisfied: tqdm in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from gdown->moval) (4.65.0)
Requirement already satisfied: beautifulsoup4 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from gdown->moval) (4.12.2)
Requirement already satisfied: importlib-resources>=1.3 in /Users/zejuli/.local/lib/python3.8/site-packages (from nibabel->moval) (5.12.0)
Requirement already satisfied: packaging>=17 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from nibabel->moval) (23.1)
Requirement already satisfied: python-dateutil>=2.8.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pandas->moval) (2.8.2)
Requirement already satisfied: pytz>=2020.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pandas->moval) (2023.3.post1)
Requirement already satisfied: iniconfig in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pytest->moval) (2.0.0)
Requirement already satisfied: pluggy<2.0,>=0.12 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pytest->moval) (1.3.0)
Requirement already satisfied: exceptiongroup>=1.0.0rc8 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pytest->moval) (1.1.3)
Requirement already satisfied: tomli>=1.0.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pytest->moval) (2.0.1)
Requirement already satisfied: zipp>=3.1.0 in /Users/zejuli/.local/lib/python3.8/site-packages (from importlib-resources>=1.3->nibabel->moval) (3.15.0)
Requirement already satisfied: soupsieve>1.2 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from beautifulsoup4->gdown->moval) (2.5)
Requirement already satisfied: charset-normalizer<4,>=2 in /Users/zejuli/.local/lib/python3.8/site-packages (from requests[socks]->gdown->moval) (3.1.0)
Requirement already satisfied: idna<4,>=2.5 in /Users/zejuli/.local/lib/python3.8/site-packages (from requests[socks]->gdown->moval) (3.4)
Requirement already satisfied: urllib3<3,>=1.21.1 in /Users/zejuli/.local/lib/python3.8/site-packages (from requests[socks]->gdown->moval) (2.0.3)
Requirement already satisfied: certifi>=2017.4.17 in /Users/zejuli/.local/lib/python3.8/site-packages (from requests[socks]->gdown->moval) (2023.5.7)
Requirement already satisfied: PySocks!=1.5.7,>=1.5.6 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from requests[socks]->gdown->moval) (1.7.1)
Requirement already satisfied: seaborn in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (0.12.0)
Requirement already satisfied: numpy>=1.17 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from seaborn) (1.24.4)
Requirement already satisfied: pandas>=0.25 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from seaborn) (1.5.3)
Requirement already satisfied: matplotlib>=3.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from seaborn) (3.7.4)
Requirement already satisfied: contourpy>=1.0.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (1.1.1)
Requirement already satisfied: cycler>=0.10 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (4.46.0)
Requirement already satisfied: kiwisolver>=1.0.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (1.4.5)
Requirement already satisfied: packaging>=20.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (23.1)
Requirement already satisfied: pillow>=6.2.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (10.1.0)
Requirement already satisfied: pyparsing>=2.3.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (3.1.1)
Requirement already satisfied: python-dateutil>=2.7 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (2.8.2)
Requirement already satisfied: importlib-resources>=3.2.0 in /Users/zejuli/.local/lib/python3.8/site-packages (from matplotlib>=3.1->seaborn) (5.12.0)
Requirement already satisfied: pytz>=2020.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pandas>=0.25->seaborn) (2023.3.post1)
Requirement already satisfied: zipp>=3.1.0 in /Users/zejuli/.local/lib/python3.8/site-packages (from importlib-resources>=3.2.0->matplotlib>=3.1->seaborn) (3.15.0)
Requirement already satisfied: six>=1.5 in /Users/zejuli/.local/lib/python3.8/site-packages (from python-dateutil>=2.7->matplotlib>=3.1->seaborn) (1.16.0)
Requirement already satisfied: pandas in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (1.5.3)
Requirement already satisfied: python-dateutil>=2.8.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pandas) (2.8.2)
Requirement already satisfied: pytz>=2020.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pandas) (2023.3.post1)
Requirement already satisfied: numpy>=1.20.3 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from pandas) (1.24.4)
Requirement already satisfied: six>=1.5 in /Users/zejuli/.local/lib/python3.8/site-packages (from python-dateutil>=2.8.1->pandas) (1.16.0)
Requirement already satisfied: tqdm in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (4.65.0)
Requirement already satisfied: matplotlib in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (3.7.4)
Requirement already satisfied: contourpy>=1.0.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (1.1.1)
Requirement already satisfied: cycler>=0.10 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (4.46.0)
Requirement already satisfied: kiwisolver>=1.0.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (1.4.5)
Requirement already satisfied: numpy<2,>=1.20 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (1.24.4)
Requirement already satisfied: packaging>=20.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (23.1)
Requirement already satisfied: pillow>=6.2.0 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (10.1.0)
Requirement already satisfied: pyparsing>=2.3.1 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (3.1.1)
Requirement already satisfied: python-dateutil>=2.7 in /Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages (from matplotlib) (2.8.2)
Requirement already satisfied: importlib-resources>=3.2.0 in /Users/zejuli/.local/lib/python3.8/site-packages (from matplotlib) (5.12.0)
Requirement already satisfied: zipp>=3.1.0 in /Users/zejuli/.local/lib/python3.8/site-packages (from importlib-resources>=3.2.0->matplotlib) (3.15.0)
Requirement already satisfied: six>=1.5 in /Users/zejuli/.local/lib/python3.8/site-packages (from python-dateutil>=2.7->matplotlib) (1.16.0)
[2]:
import os
import gdown
import itertools
import zipfile
import pandas as pd
import numpy as np
import moval
import scipy
from tqdm import tqdm
import seaborn as sns
import matplotlib.pyplot as plt
[3]:
print(f"The installed MOVAL verision is {moval.__version__}")
print(f"The installed seaborn verision is {sns.__version__}")
The installed MOVAL verision is 0.3.16
The installed seaborn verision is 0.12.0
Load the data
[4]:
# download the data, which we used for MICCAI 2022
output = "data_moval.zip"
if not os.path.exists(output):
url = "https://drive.google.com/u/0/uc?id=139pqxkG2ccIFq6qNArnFJWQ2by2Spbxt&export=download"
output = "data_moval.zip"
gdown.download(url, output, quiet=False)
directory_data = "data_moval"
if not os.path.exists(directory_data):
with zipfile.ZipFile(output, 'r') as zip_ref:
zip_ref.extractall(directory_data)
[5]:
# download the coresponding image data
output = "img_cifar.zip"
if not os.path.exists(output):
url = "https://drive.google.com/u/0/uc?id=1B5GH2KUnYKybj6gshGbkpGsg8lT5LVFt&export=download"
output = "img_cifar.zip"
gdown.download(url, output, quiet=False)
directory_data = "img_cifar"
if not os.path.exists(directory_data):
with zipfile.ZipFile(output, 'r') as zip_ref:
zip_ref.extractall(directory_data)
[6]:
ls
analysis_cls.ipynb data_moval_supp.zip img_cifar/
analysis_seg2d.ipynb estim_cls.ipynb img_cifar.zip
analysis_seg3d.ipynb estim_seg2d.ipynb img_prostate/
data_moval/ estim_seg3d.ipynb img_prostate.zip
data_moval.zip img_cardiac/
data_moval_supp/ img_cardiac.zip
[7]:
# now I am playing with cifar10 classification
val_data = "data_moval/cifar10results/predictions_val.csv"
test_data = "data_moval/cifar10results/predictions_val_motion_blur.csv"
# validation data
cnn_pred = pd.read_csv(val_data)
targets_all = np.array(cnn_pred[['target_0', 'target_1', 'target_2', 'target_3', 'target_4',
'target_5', 'target_6', 'target_7', 'target_8', 'target_9']])
logits = np.array(cnn_pred[['logit_0', 'logit_1', 'logit_2', 'logit_3', 'logit_4',
'logit_5', 'logit_6', 'logit_7', 'logit_8', 'logit_9']])
gt = np.argmax(targets_all, axis = 1)
# logits is of shape ``(n, d)``
# gt is of shape ``(n, )``
# test data
cnn_pred_test = pd.read_csv(test_data)
targets_all_test = np.array(cnn_pred_test[['target_0', 'target_1', 'target_2', 'target_3', 'target_4',
'target_5', 'target_6', 'target_7', 'target_8', 'target_9']])
logits_test = np.array(cnn_pred_test[['logit_0', 'logit_1', 'logit_2', 'logit_3', 'logit_4',
'logit_5', 'logit_6', 'logit_7', 'logit_8', 'logit_9']])
gt_test = np.argmax(targets_all_test, axis = 1)
[8]:
# Here I want to split the test data such that they are not overlapped.
import random
random.seed(79)
test_ind = list(range(10000))
random.shuffle(test_ind)
#
val_ind = test_ind[:3000]
testc_indx_5 = [x+40000 for x in test_ind[3000:]]
testc_indxs = [testc_indx_5]
#
[9]:
logits_val = logits[val_ind, :]
gt_val = gt[val_ind]
#
logits_tests = []
gt_tests = []
#
for testc_indx in testc_indxs:
#
logits_tests.append(logits_test[testc_indx, :])
gt_tests.append(gt_test[testc_indx])
[10]:
print(f"The validation predictions, ``logits`` are of shape (n, d), which are now {logits_val.shape}")
print(f"The validation labels, ``gt`` are of shape (n, ), which are now {gt_val.shape}\n")
print(f"The number of test conditions is {len(logits_tests)}")
print(f"The test predictions, ``logits_test`` are of shape (n', d), which are now {logits_tests[0].shape}")
print(f"The test labels, ``gt_test`` are of shape (n', ), which are now {gt_tests[0].shape}")
The validation predictions, ``logits`` are of shape (n, d), which are now (3000, 10)
The validation labels, ``gt`` are of shape (n, ), which are now (3000,)
The number of test conditions is 1
The test predictions, ``logits_test`` are of shape (n', d), which are now (7000, 10)
The test labels, ``gt_test`` are of shape (n', ), which are now (7000,)
[11]:
# Load the image data
imgc_path = "img_cifar/img_cifar/motion_blur.npy"
imgc_load = np.load(imgc_path)
imgc_load_5 = imgc_load[testc_indx_5, :, :, :]
[12]:
print(f"Img cifar under domain shifts is of shape {imgc_load_5.shape}")
Img cifar under domain shifts is of shape (7000, 32, 32, 3)
MOVAL estimation
[13]:
moval_options = []
moval_options.append(['ac-model', 'classification', 'max_class_probability-conf', False])
moval_options.append(['ts-model', 'classification', 'max_class_probability-conf', False])
moval_options.append(['ts-model', 'classification', 'max_class_probability-conf', True])
moval_options.append(['ts-atc-model', 'classification', 'entropy-conf', True])
[14]:
def test_cls(estim_algorithm, mode, confidence_scores, class_specific, logits, gt, logits_tests, gt_tests):
"""Test MOVAL with different conditions for classification tasks
Args:
mode (str): The given task to estimate model performance.
confidence_scores (str):
The method to calculate the confidence scores. We provide a list of confidence score calculation methods which
can be displayed by running :py:func:`moval.models.get_conf_options`.
estim_algorithm (str):
The algorithm to estimate model performance. We also provide a list of estimation algorithm which can be displayed by
running :py:func:`moval.models.get_estim_options`.
class_specific (bool):
If ``True``, the calculation will match class-wise confidence to class-wise accuracy.
logits: The network output (logits) of shape ``(n, d)`` for classification.
gt: The cooresponding annotation of shape ``(n, )`` for classification.
logits_tests: A list of m test conditions ``(n', d)``.
gt_test: The cooresponding annotation of a list of m ``(n', )``.
Returns:
err_test: A list of m test err.
moval_model: Optimized moval model.
"""
moval_model = moval.MOVAL(
mode = mode,
metric = "accuracy",
confidence_scores = confidence_scores,
estim_algorithm = estim_algorithm,
class_specific = class_specific
)
#
moval_model.fit(logits, gt)
# save the test err in the result files.
err_tests = []
for k_test in range(len(logits_tests)):
_logits_test = logits_tests[k_test]
_gt_test = gt_tests[k_test]
estim_acc_test = moval_model.estimate(_logits_test)
pred_test = np.argmax(_logits_test, axis = 1)
err_test = np.abs( np.sum(_gt_test == pred_test) / len(_gt_test) - estim_acc_test )
err_tests.append(err_test)
return err_tests, moval_model
[15]:
_, moval_model_MCP = test_cls(
estim_algorithm = moval_options[0][0],
mode = moval_options[0][1],
confidence_scores = moval_options[0][2],
class_specific = moval_options[0][3],
logits = logits_val,
gt = gt_val,
logits_tests = logits_tests,
gt_tests = gt_tests
)
#
_, moval_model_baseline = test_cls(
estim_algorithm = moval_options[1][0],
mode = moval_options[1][1],
confidence_scores = moval_options[1][2],
class_specific = moval_options[1][3],
logits = logits_val,
gt = gt_val,
logits_tests = logits_tests,
gt_tests = gt_tests
)
#
_, moval_model_cs = test_cls(
estim_algorithm = moval_options[2][0],
mode = moval_options[2][1],
confidence_scores = moval_options[2][2],
class_specific = moval_options[2][3],
logits = logits_val,
gt = gt_val,
logits_tests = logits_tests,
gt_tests = gt_tests
)
#
_, moval_model_cs_entropy = test_cls(
estim_algorithm = moval_options[3][0],
mode = moval_options[3][1],
confidence_scores = moval_options[3][2],
class_specific = moval_options[3][3],
logits = logits_val,
gt = gt_val,
logits_tests = logits_tests,
gt_tests = gt_tests
)
Starting optimizing for model ac-model with confidence max_class_probability-conf based on metric accuracy, class specific is False.
Calculating and saving the fitted case-wise performance...
Starting optimizing for model ts-model with confidence max_class_probability-conf based on metric accuracy, class specific is False.
Opitimizing with 3000 samples...
Calculating and saving the fitted case-wise performance...
Starting optimizing for model ts-model with confidence max_class_probability-conf based on metric accuracy, class specific is True.
Opitimizing with 3000 samples...
Calculating and saving the fitted case-wise performance...
Starting optimizing for model ts-atc-model with confidence entropy-conf based on metric accuracy, class specific is True.
Opitimizing with 3000 samples...
Calculating and saving the fitted case-wise performance...
Get the confidence scores
[16]:
conf_mcp = moval_model_MCP.model_.calibrate(logits_tests[0]) # (n, )
conf_baseline = moval_model_baseline.model_.calibrate(logits_tests[0]) # (n, )
conf_cs = moval_model_cs.model_.calibrate(logits_tests[0]) # (n, )
conf_cs_entropy = moval_model_cs_entropy.model_.calibrate(logits_tests[0]) # (n, )
[17]:
# create dataframe
# it should contain: conf, gt, pred, correctness.
d_mcp = {'Confidence Score': conf_mcp,
'ID': range(len(conf_mcp)),
'Ground Truth': gt_tests[0],
'Prediction': np.argmax(logits_tests[0], axis=1),
'Correctness': gt_tests[0] == np.argmax(logits_tests[0], axis=1)}
df_mcp = pd.DataFrame(data=d_mcp)
#
d_baseline = {'Confidence Score': conf_baseline,
'ID': range(len(conf_baseline)),
'Ground Truth': gt_tests[0],
'Prediction': np.argmax(logits_tests[0], axis=1),
'Correctness': gt_tests[0] == np.argmax(logits_tests[0], axis=1)}
df_baseline = pd.DataFrame(data=d_baseline)
#
d_cs = {'Confidence Score': conf_cs,
'ID': range(len(conf_cs)),
'Ground Truth': gt_tests[0],
'Prediction': np.argmax(logits_tests[0], axis=1),
'Correctness': gt_tests[0] == np.argmax(logits_tests[0], axis=1)}
df_cs = pd.DataFrame(data=d_cs)
#
d_cs_entropy = {'Confidence Score': conf_cs_entropy,
'ID': range(len(conf_cs_entropy)),
'Ground Truth': gt_tests[0],
'Prediction': np.argmax(logits_tests[0], axis=1),
'Correctness': gt_tests[0] == np.argmax(logits_tests[0], axis=1)}
df_cs_entropy = pd.DataFrame(data=d_cs_entropy)
[18]:
df_mcp.head()
[18]:
| Confidence Score | ID | Ground Truth | Prediction | Correctness | |
|---|---|---|---|---|---|
| 0 | 0.721172 | 0 | 5 | 3 | False |
| 1 | 0.998511 | 1 | 0 | 0 | True |
| 2 | 0.999995 | 2 | 0 | 0 | True |
| 3 | 0.990725 | 3 | 8 | 0 | False |
| 4 | 0.999205 | 4 | 6 | 0 | False |
Here we make three plots
A ridge plot to show the importance of class-specific alignment
A barplot to show the overall confidence score
A few examples of wrong prediction based on confidence scores

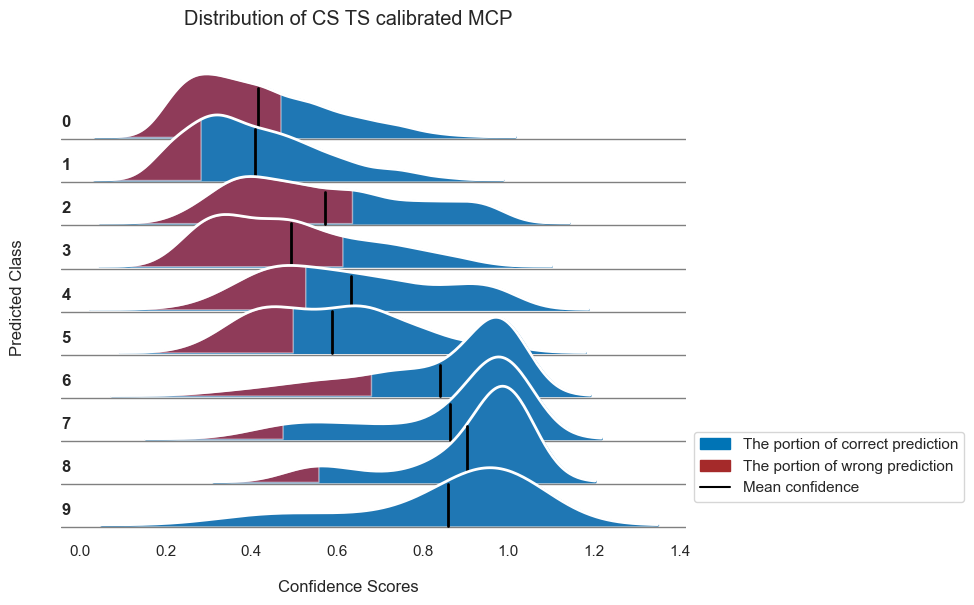

Ridge plot to show class-specific alignment
[19]:
def cal_diff(logits, gt, conf, correctness, threshold):
"""Calculate the error between the real accuracy and the portion of samples above threshold
Args:
logits: The network output (logits) of shape ``(n, d)`` for classification.
gt: The cooresponding annotation of shape ``(n, )`` for classification.
conf: The confidence score of shape ``(n, )``.
correctness (float): The expected correct accuracy.
threshold (float): The threshold to choose the samples.
Return:
error (float): The error between current accuracy and expected accuracy.
"""
threshold_pos = np.where(conf > threshold)[0]
acc = np.sum(len(threshold_pos)) / max(len(conf), 1e-6)
diff_cls = np.abs(acc - correctness)
return diff_cls
class optimize_thres:
def __init__(self, correct_portion = 0.9):
self.correct_portion = correct_portion
def eval_func(self, x) -> float:
return cal_diff(logits = self.logits, gt = self.gt, conf = self.conf, correctness = self.correctness, threshold = x)
def get_thresholds(self, logits, gt, conf):
"""Find the class-wise threshold above which the portion of samples is equal to class-wise accuracy
Args:
logits: The network output (logits) of shape ``(n, d)`` for classification.
gt: The cooresponding annotation of shape ``(n, )`` for classification.
conf: The confidence score of shape ``(n, )``.
"""
thresholds_c = []
mean_conf = []
cls_acc = []
initial_conditions = [np.array([0.95]), np.array([0.1]), np.array([0.2]), np.array([0.3]), np.array([0.4]),
np.array([0.5]), np.array([0.6]), np.array([0.7]), np.array([0.8]), np.array([0.9])]
for k_cls in range(logits.shape[1]):
k_pos = np.where(np.argmax(logits, axis=1) == k_cls)[0]
#
_logits = logits[k_pos, :]
_gt = gt[k_pos]
_conf = conf[k_pos]
#
self.logits = _logits
self.gt = _gt
self.conf = _conf
mean_conf.append(np.mean(_conf))
#
acc = np.sum(_gt == np.argmax(_logits, axis = 1)) / len(np.argmax(_logits, axis = 1))
cls_acc.append(acc)
if acc < 1.:
self.correctness = acc
#
results = []
for initial_guess in initial_conditions:
optimization_result = scipy.optimize.minimize(
fun = self.eval_func,
x0 = initial_guess,
bounds= [(0.,1.0)],
method='Nelder-Mead',
tol=1e-07)
results.append((optimization_result.fun, optimization_result.x[0]))
#
threshold_leanred = min(results, key=lambda x: x[0])[1]
# print(eval_func(threshold_leanred))
thresholds_c.append(threshold_leanred)
else:
thresholds_c.append(0.)
return thresholds_c, mean_conf, cls_acc
[20]:
def make_ridge_plot(df, thresholds_c, mean_conf, height_ratio, title = 'Distribution of MCP'):
"""Make the ridge plots for the test case
Args:
df: The dataframe which contain all the information.
thresholds_c: A list of ``d`` thresholds, which represent the correctness of this class.
mean_conf: A list of ``d`` mean confidence.
height_ratio: A manual adjust parameter to make sure the mean confidence is within the plot.
title: The given title to be shown.
"""
sns.set_theme(style="white", rc={"axes.facecolor": (0, 0, 0, 0)})
# Initialize the FacetGrid object
g = sns.FacetGrid(df, row="Prediction", hue="Prediction", aspect=12, height=.6)
# Draw the densities in a few steps
g.map(sns.kdeplot, "Confidence Score",
fill=True, alpha=1, linewidth=1.5, color = '#1f77b4')
g.map(sns.kdeplot, "Confidence Score", color="w", lw=2)
# passing color=None to refline() uses the hue mapping
g.refline(y=-0.1, linewidth=1, linestyle="-")
# Define and use a simple function to label the plot in axes coordinates
def label(x, color, label):
ax = plt.gca()
ax.text(0, .2, label, fontweight="bold",
ha="left", va="center", transform=ax.transAxes)
g.map(label, "Confidence Score")
# Plot the mean confidence
def plot_mean(x, color, label):
ax = plt.gca()
x, y = ax.lines[0].get_data()
height = np.interp(mean_conf[np.int32(label)], x, y)
ax.axvline(mean_conf[np.int32(label)], 0.06, height * height_ratio, color="black", lw=2, ls='-')
g.map(plot_mean, "Prediction")
# Hightlight the correct region
def fill(x, color, label, threshold):
ax = plt.gca()
x, y = ax.lines[0].get_data()
mask = x < threshold[np.int32(label)]
x, y = x[mask], y[mask]
ax.fill_between(x, y1=y, alpha=0.5, facecolor='red')
g.map(fill, "Prediction", threshold = thresholds_c)
# Set the subplots to overlap
g.figure.subplots_adjust(hspace=-.6)
# Remove axes details that don't play well with overlap
g.set_titles("")
g.set(yticks=[], ylabel="")
g.set(xlabel="")
g.despine(bottom=True, left=True)
#
plt.suptitle(title, y=0.98)
# label
g.fig.text(x=0.03, y=0.5,
verticalalignment='center', #make sure it's aligned at center vertically
s='Predicted Class', #this is the text in the ylabel
size=12, #customize the fontsize if you will
rotation=90) #vertical text
g.fig.text(x=0.5, y=0.01,
horizontalalignment='center', #make sure it's aligned at center horizontally
s='Confidence Scores', #this is the text in the xlabel
size=12)
import matplotlib.patches as mpatches
import matplotlib.lines as mlines
blue_patch = mpatches.Patch(color='#0074b6', label='The portion of correct prediction')
red_patch = mpatches.Patch(color='#a52a2a', label='The portion of wrong prediction')
black_line = mlines.Line2D([], [], color='black', label='Mean confidence')
plt.legend(handles=[blue_patch, red_patch, black_line], bbox_to_anchor=(1, 1), loc='upper left', facecolor='white')
[21]:
threshold_solver = optimize_thres()
thresholds_c_mcp, mean_conf_mcp, cls_acc_mcp = threshold_solver.get_thresholds(logits = logits_tests[0], gt = gt_tests[0], conf = conf_mcp)
thresholds_c_baseline, mean_conf_baseline, cls_acc_baseline = threshold_solver.get_thresholds(logits = logits_tests[0], gt = gt_tests[0], conf = conf_baseline)
thresholds_c_cs, mean_conf_cs, cls_acc_cs = threshold_solver.get_thresholds(logits = logits_tests[0], gt = gt_tests[0], conf = conf_cs)
thresholds_c_cs_entropy, mean_conf_cs_entropy, cls_acc_cs_entropy = threshold_solver.get_thresholds(logits = logits_tests[0], gt = gt_tests[0], conf = conf_cs_entropy)
[22]:
make_ridge_plot(df_mcp, thresholds_c_mcp, mean_conf_mcp, height_ratio = 0.15, title = 'Distribution of MCP')

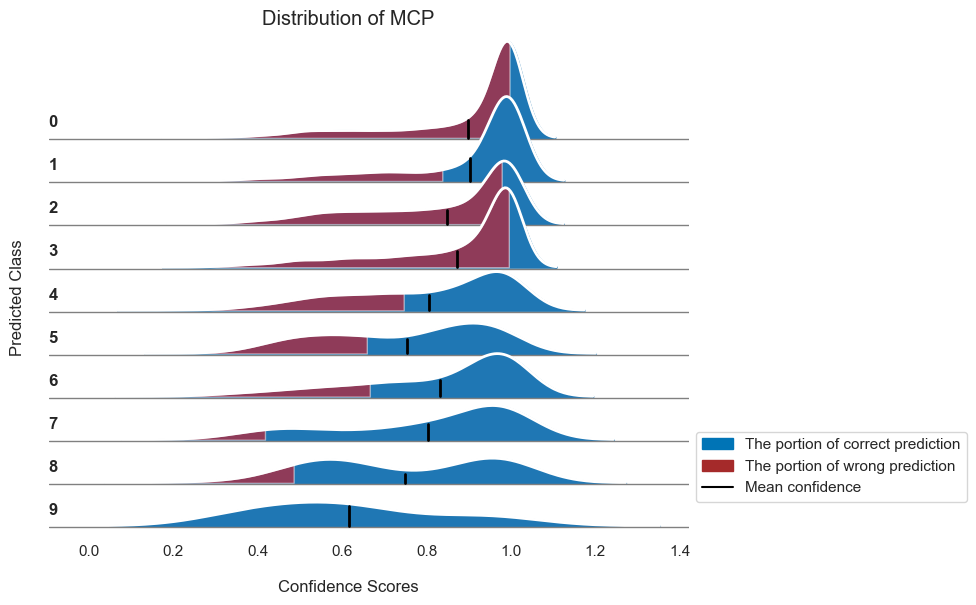

/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
[23]:
make_ridge_plot(df_baseline, thresholds_c_baseline, mean_conf_baseline, height_ratio = 0.27, title = 'Distribution of TS calibrated MCP')

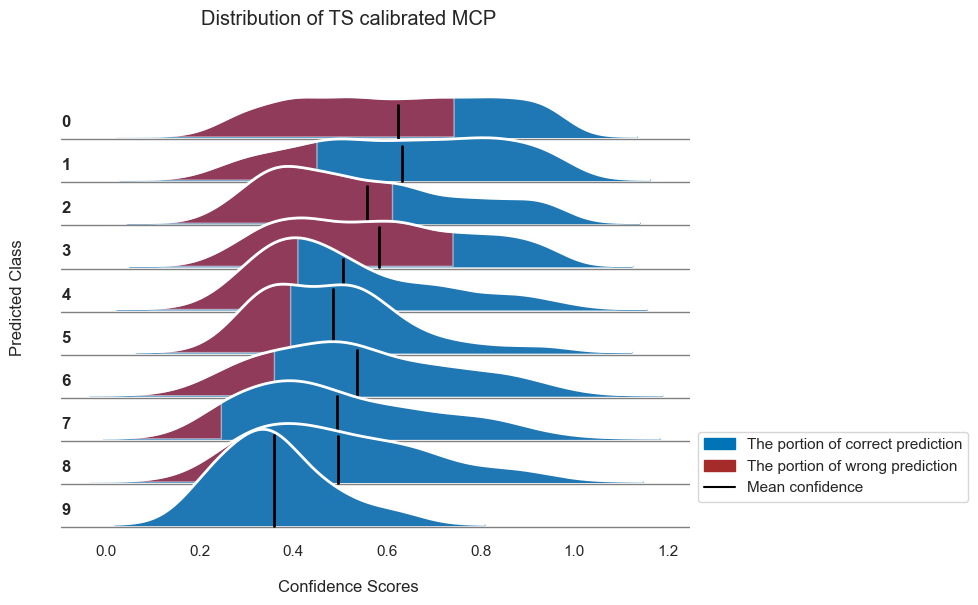

/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
[24]:
make_ridge_plot(df_cs, thresholds_c_cs, mean_conf_cs, height_ratio = 0.24, title = 'Distribution of CS TS calibrated MCP')
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
[25]:
make_ridge_plot(df_cs_entropy, thresholds_c_cs_entropy, mean_conf_cs_entropy, height_ratio = 0.32, title = 'Distribution of CS TS-ATC calibrated Entropy')

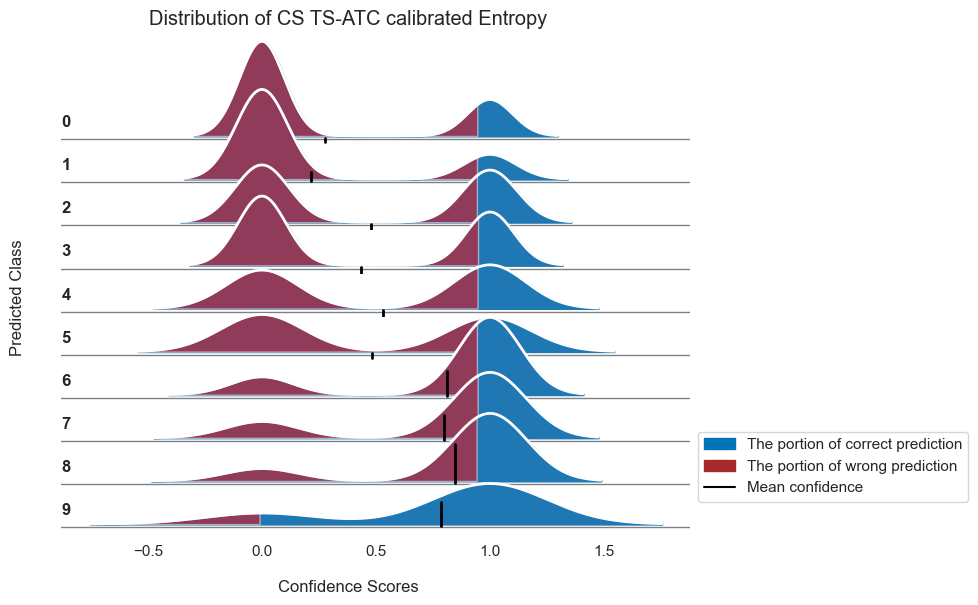

/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
/Users/zejuli/opt/anaconda3/envs/moval/lib/python3.8/site-packages/seaborn/axisgrid.py:745: FutureWarning: iteritems is deprecated and will be removed in a future version. Use .items instead.
Making barplot for testing cases to show overall performance
[26]:
def make_bar_plot(df, cls_acc, mean_conf, title = 'MCP Grouped by Predicted Class'):
"""Make the bar plot for the test case
Args:
df: The dataframe which contain all the information.
cls_acc: A list of ``d`` mean accruacy.
mean_conf: A list of ``d`` mean confidence.
title: The given title to be shown.
"""
# Set up the figure size and style
sns.set(rc={'figure.figsize':(12,3)})
sns.set_style("darkgrid")
# Define the palette
category_palette = {True: '#0074b6', False: '#a52a2a'}
# Create the bar plot
ax = sns.barplot(data=df, x="ID", y="Confidence Score", hue="Correctness",
order=df["ID"], palette=category_palette)
# Set x-ticks to show every 10th group
group_size = 11
x_ticks = [i * group_size + group_size / 2 - 1 for i in range(len(df["ID"]) // group_size)]
ax.set(xticks=x_ticks, xticklabels=np.arange(0, len(x_ticks)), xlabel="Sample ID Groups by Predicted Class")
# Move the legend to the upper left
import matplotlib.patches as mpatches
import matplotlib.lines as mlines
blue_patch = mpatches.Patch(color='#0074b6', label='Correct Prediction')
red_patch = mpatches.Patch(color='#a52a2a', label='Wrong Prediction')
green_patch = mpatches.Patch(color='#0074b6', alpha = 0.1, label='Mean Confidence')
blank_patch = mpatches.Patch(color='#ffffff', ec='#000000' ,label='Class-Wise Accuracy', lw = 1)
plt.legend(handles=[blue_patch, red_patch, green_patch, blank_patch], bbox_to_anchor=(1, 0.75), loc='upper left')
ax.set_xlim(-2,110)
# Fill the area between (0, 0) and (10, 1)
ax.fill_between([-0.75, 9.75], 0, mean_conf[0], alpha=0.1, facecolor='#0074b6')
ax.fill_between([-0.75, 9.75], 0, cls_acc[0], facecolor='none', edgecolor='#000000')
ax.fill_between([10.25, 20.75], 0, mean_conf[1], alpha=0.1, facecolor='#0074b6')
ax.fill_between([10.25, 20.75], 0, cls_acc[1], facecolor='none', edgecolor='#000000')
ax.fill_between([21.25, 31.75], 0, mean_conf[2], alpha=0.1, facecolor='#0074b6')
ax.fill_between([21.25, 31.75], 0, cls_acc[2], facecolor='none', edgecolor='#000000')
ax.fill_between([32.25, 42.75], 0, mean_conf[3], alpha=0.1, facecolor='#0074b6')
ax.fill_between([32.25, 42.75], 0, cls_acc[3], facecolor='none', edgecolor='#000000')
ax.fill_between([43.25, 53.75], 0, mean_conf[4], alpha=0.1, facecolor='#0074b6')
ax.fill_between([43.25, 53.75], 0, cls_acc[4], facecolor='none', edgecolor='#000000')
ax.fill_between([54.25, 64.75], 0, mean_conf[5], alpha=0.1, facecolor='#0074b6')
ax.fill_between([54.25, 64.75], 0, cls_acc[5], facecolor='none', edgecolor='#000000')
ax.fill_between([65.25, 75.75], 0, mean_conf[6], alpha=0.1, facecolor='#0074b6')
ax.fill_between([65.25, 75.75], 0, cls_acc[6], facecolor='none', edgecolor='#000000')
ax.fill_between([76.25, 86.75], 0, mean_conf[7], alpha=0.1, facecolor='#0074b6')
ax.fill_between([76.25, 86.75], 0, cls_acc[7], facecolor='none', edgecolor='#000000')
ax.fill_between([87.25, 97.75], 0, mean_conf[8], alpha=0.1, facecolor='#0074b6')
ax.fill_between([87.25, 97.75], 0, cls_acc[8], facecolor='none', edgecolor='#000000')
ax.fill_between([98.25, 108.75], 0, mean_conf[8], alpha=0.1, facecolor='#0074b6')
ax.fill_between([98.25, 108.75], 0, cls_acc[8], facecolor='none', edgecolor='#000000')
plt.title(title)
# Show the plot
plt.show()
[27]:
def get_df_subset(df):
"""Get the subset of df with group-wise sampling, for visualization.
Args:
df: The dataframe which contain all the information.
Returns:
df_subset: The subsampled df.
"""
def random_sample(group, n=10):
return group.sample(n, random_state=1)
# Apply the random_sample function to each group based on 'Prediction'
df_subset = df.groupby('Prediction', group_keys=False).apply(random_sample, n=10)
print(f"Analyzing data with {len(df_subset)} samples")
df_space_0 = {'Confidence Score': 0, 'ID': 7001, 'Ground Truth': 0, 'Prediction': 0, 'Correctness': True}
df_space_1 = {'Confidence Score': 0, 'ID': 7002, 'Ground Truth': 1, 'Prediction': 1, 'Correctness': True}
df_space_2 = {'Confidence Score': 0, 'ID': 7003, 'Ground Truth': 2, 'Prediction': 2, 'Correctness': True}
df_space_3 = {'Confidence Score': 0, 'ID': 7004, 'Ground Truth': 3, 'Prediction': 3, 'Correctness': True}
df_space_4 = {'Confidence Score': 0, 'ID': 7005, 'Ground Truth': 4, 'Prediction': 4, 'Correctness': True}
df_space_5 = {'Confidence Score': 0, 'ID': 7006, 'Ground Truth': 5, 'Prediction': 5, 'Correctness': True}
df_space_6 = {'Confidence Score': 0, 'ID': 7007, 'Ground Truth': 6, 'Prediction': 6, 'Correctness': True}
df_space_7 = {'Confidence Score': 0, 'ID': 7008, 'Ground Truth': 7, 'Prediction': 7, 'Correctness': True}
df_space_8 = {'Confidence Score': 0, 'ID': 7009, 'Ground Truth': 8, 'Prediction': 8, 'Correctness': True}
df_space_9 = {'Confidence Score': 0, 'ID': 7010, 'Ground Truth': 9, 'Prediction': 9, 'Correctness': True}
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_0])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_1])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_2])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_3])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_4])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_5])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_6])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_7])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_8])], ignore_index=True)
df_subset = pd.concat([df_subset, pd.DataFrame([df_space_9])], ignore_index=True)
#
# First sorting by 'Prediction' in ascending order
df_subset = df_subset.sort_values(by="Prediction", ascending=True, na_position='first')
# Define a custom sorting key function
def custom_sort(row):
return row['Prediction'], -row['Confidence Score'] # Note the negative sign for descending order
# Apply the custom sorting key function to the DataFrame
df_subset['Sorting_Key'] = df_subset.apply(custom_sort, axis=1)
df_subset = df_subset.sort_values(by='Sorting_Key')
# Drop the temporary column
df_subset = df_subset.drop(columns=['Sorting_Key'])
return df_subset
[28]:

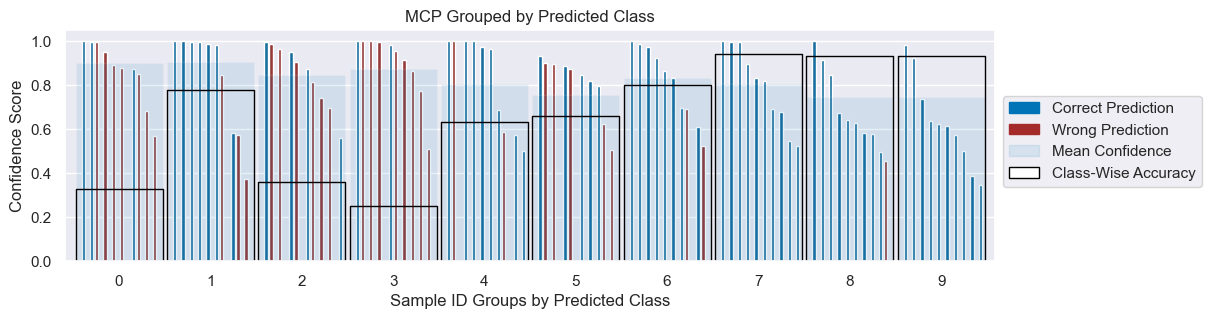

make_bar_plot(get_df_subset(df_mcp), cls_acc_mcp, mean_conf_mcp, title = 'MCP Grouped by Predicted Class')
Analyzing data with 100 samples
[29]:

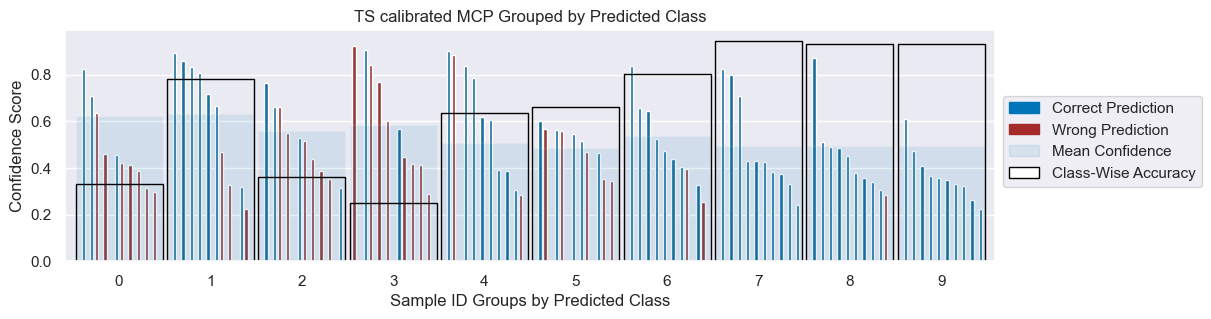

make_bar_plot(get_df_subset(df_baseline), cls_acc_baseline, mean_conf_baseline, title = 'TS calibrated MCP Grouped by Predicted Class')
Analyzing data with 100 samples
[30]:

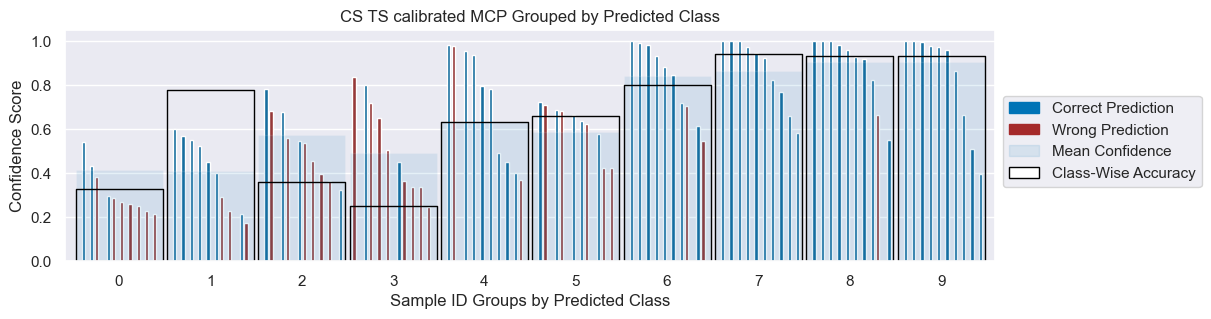

make_bar_plot(get_df_subset(df_cs), cls_acc_cs, mean_conf_cs, title = 'CS TS calibrated MCP Grouped by Predicted Class')
Analyzing data with 100 samples
[31]:

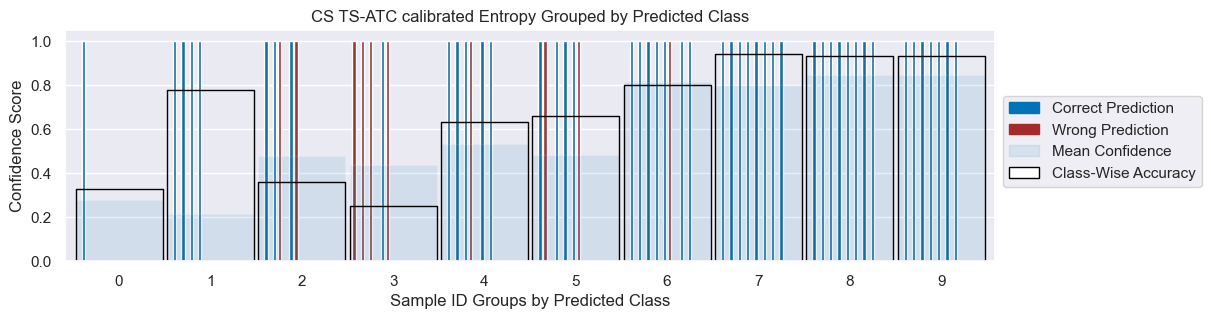

make_bar_plot(get_df_subset(df_cs_entropy), cls_acc_cs_entropy, mean_conf_cs_entropy, title = 'CS TS-ATC calibrated Entropy Grouped by Predicted Class')
Analyzing data with 100 samples
Making some visualizatin of images
[32]:
cifarlabel = ["airplane", "automobile", "bird", "cat", "deer", "dog", "frog", "horse", "ship", "truck"]
def investigate_score(conf, logits, gt, title = 'The 5 Lowest and Highest Confidence Score of MCP'):
"""Investigate the lowest and highest score
Args:
conf: The confidence score of shape ``(n, )``.
logits: The network output (logits) of shape ``(n, d)`` for classification.
gt: The cooresponding annotation of shape ``(n, )`` for classification.
title: The given title to be shown.
"""
conf_sort = np.argsort(conf)
sellist = np.concatenate((conf_sort[:5], conf_sort[-5:]))
imgc_load_10 = imgc_load_5[sellist, :, :, :]
conf_10 = conf[sellist]
pred_10 = np.argmax(logits, axis=1)[sellist]
gt_10 = gt[sellist]
# Set up the figure size
fig, axes = plt.subplots(nrows=4, ncols=5, figsize=(15, 9))
# Loop through each image and plot it with descriptions
for i in range(10):
row = (i // 5) * 2
axes[row, i % 5].imshow(imgc_load_10[i])
axes[row, i % 5].axis('off') # Turn off axis labels
# Add descriptions below each image
axes[row + 1, i % 5].text(0.5, 0.63, f'Model Confidence is {conf_10[i]:.3f}', ha='center', va='center', fontsize=12)
axes[row + 1, i % 5].text(0.5, 0.53, f'Ground Truth is {cifarlabel[gt_10[i]]}', ha='center', va='center', fontsize=12)
axes[row + 1, i % 5].text(0.5, 0.43, f'Prediction is {cifarlabel[pred_10[i]]}', ha='center', va='center', fontsize=12)
axes[row + 1, i % 5].axis('off') # Turn off axis labels for the second row
# Add a title to the entire figure
plt.suptitle(title, fontsize=20)
# Adjust layout for better spacing
plt.subplots_adjust(wspace=0., hspace=-0.3) # Adjust spacing parameters
# Show the plot
plt.show()
[33]:

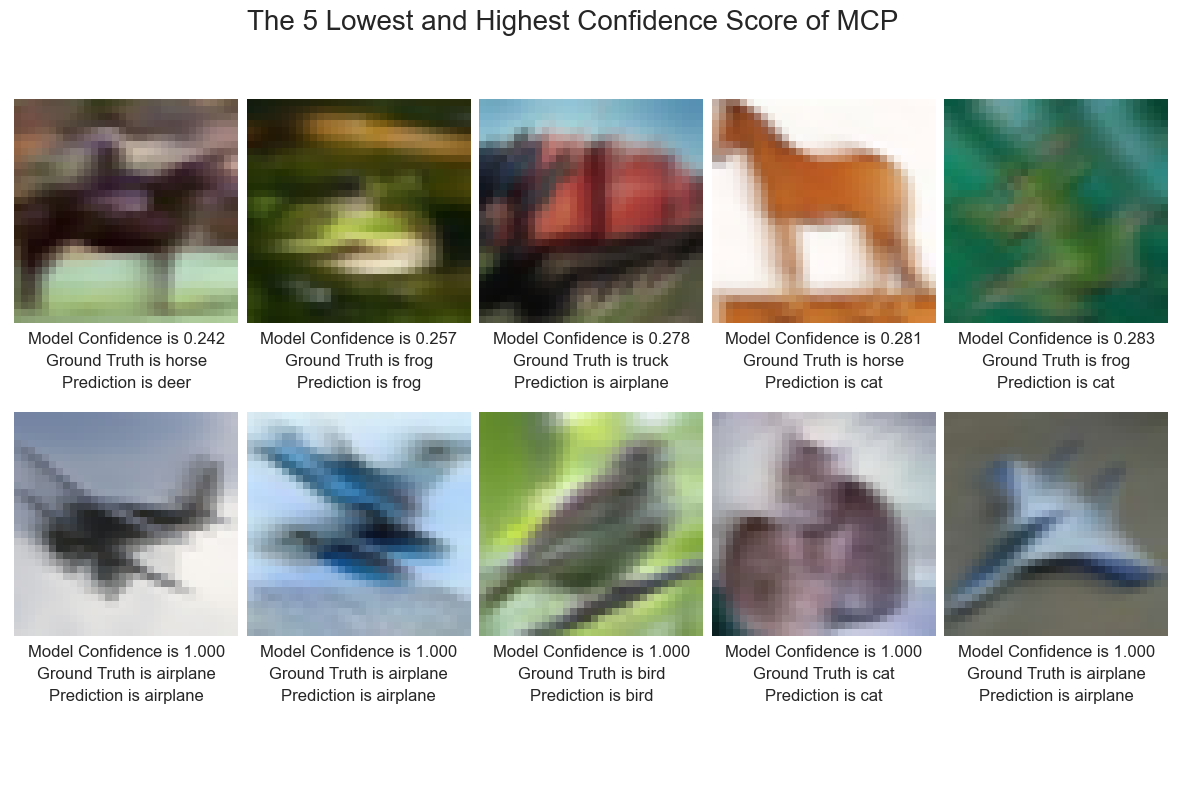

investigate_score(conf_mcp, logits_tests[0], gt_tests[0], title = 'The 5 Lowest and Highest Confidence Score of MCP')
[34]:

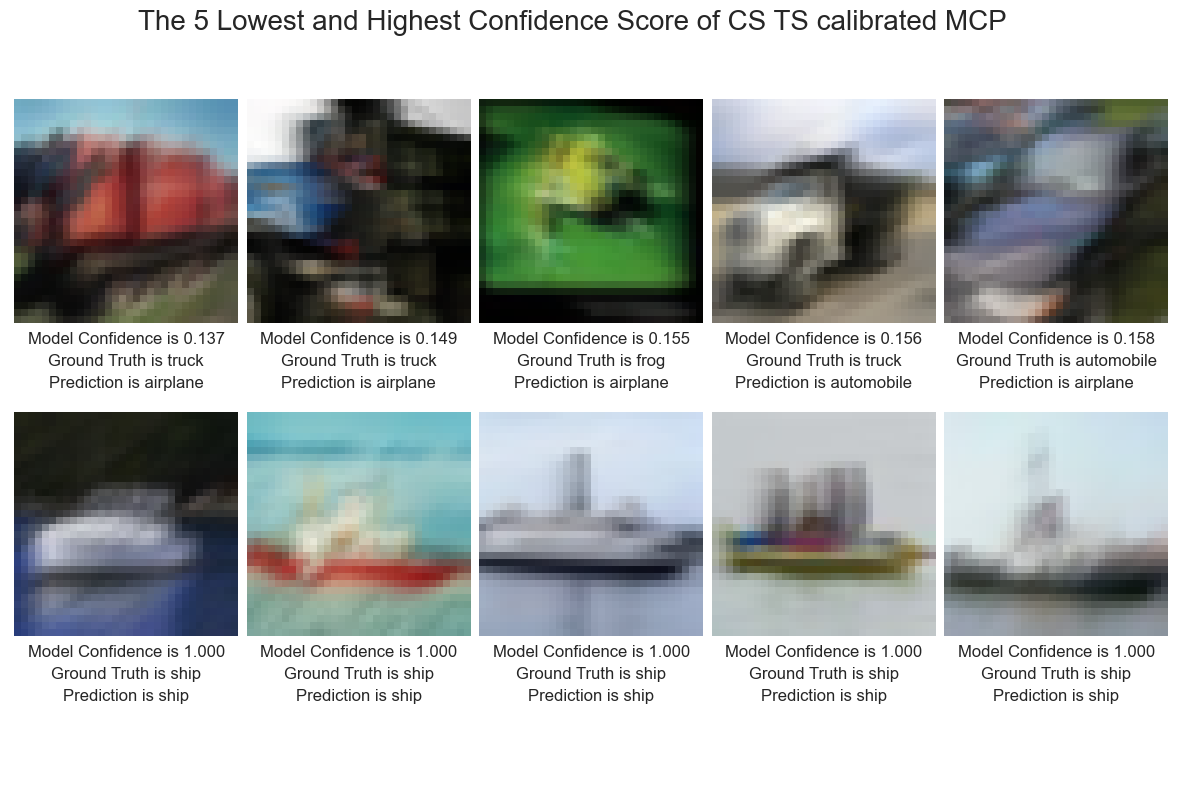

investigate_score(conf_cs, logits_tests[0], gt_tests[0], title = 'The 5 Lowest and Highest Confidence Score of CS TS calibrated MCP')
Performance tracking
[35]:
perf = moval_model_cs.fitted_perf
[36]:

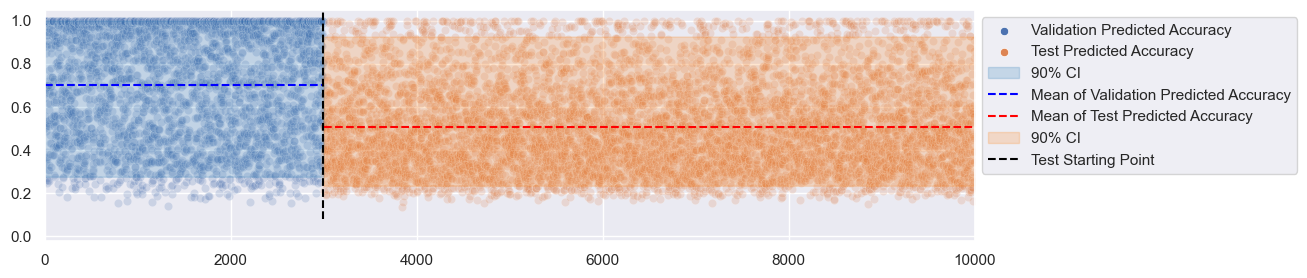

ax = sns.scatterplot(x=range(len(perf)), y=perf, alpha=0.2,label='Validation Predicted Accuracy')
ax = sns.scatterplot(x=range(len(perf), len(perf)+len(conf_cs)), y=conf_cs, alpha=0.2,label='Test Predicted Accuracy')
# Calculate the 5th and 95th percentiles
percentiles = np.percentile(perf, [5, 95])
# Shade the area between the 5th and 95th percentiles
plt.fill_between(x=range(len(perf)), y1=percentiles[0], y2=percentiles[1], color='#1f77b4', alpha=0.2, label='90% CI')
# Calculate the mean of the data
mean_value = sum(perf) / len(perf)
# Draw a horizontal line at the mean
plt.axhline(y = mean_value, color='blue', linestyle='--', label='Mean of Validation Predicted Accuracy', xmin=0, xmax=(len(perf) - 1) / (len(perf) + len(conf_cs) - 1))
mean_value_new = sum(conf_cs) / len(conf_cs)
# Draw a horizontal line at the mean
plt.axhline(y = mean_value_new, color='red', linestyle='--', label='Mean of Test Predicted Accuracy', xmin=len(perf) / (len(perf) + len(conf_cs) - 1), xmax=1)
percentiles = np.percentile(conf_cs, [5, 95])
# Shade the area between the 5th and 95th percentiles
plt.fill_between(x=range(len(perf), len(perf)+len(conf_cs)), y1=percentiles[0], y2=percentiles[1], color='#ff7f0e', alpha=0.2, label='90% CI')
ymin, ymax = plt.ylim()
plt.axvline(x=len(perf) - 1,ymin=ymin, ymax=ymax, color='black', linestyle='--', label='Test Starting Point')
ax.set(ylim=(-0.02, 1.05))
ax.set(xlim=(0, len(perf)+len(conf_cs)))
# Show the legend for both scatter plots and lines without alpha
legend = plt.legend()
legend.legendHandles[0]._alpha = 1 # Set marker size for the scatter plots in the legend
legend.legendHandles[1]._alpha = 1
sns.move_legend(ax, "upper left", bbox_to_anchor=(1, 1))
/var/folders/nl/7_2jcxd12wb5z06jvsj1v4240000gn/T/ipykernel_45581/83387037.py:36: MatplotlibDeprecationWarning: The legendHandles attribute was deprecated in Matplotlib 3.7 and will be removed two minor releases later. Use legend_handles instead.
legend.legendHandles[0]._alpha = 1 # Set marker size for the scatter plots in the legend
/var/folders/nl/7_2jcxd12wb5z06jvsj1v4240000gn/T/ipykernel_45581/83387037.py:37: MatplotlibDeprecationWarning: The legendHandles attribute was deprecated in Matplotlib 3.7 and will be removed two minor releases later. Use legend_handles instead.
legend.legendHandles[1]._alpha = 1
[ ]:
[ ]:
